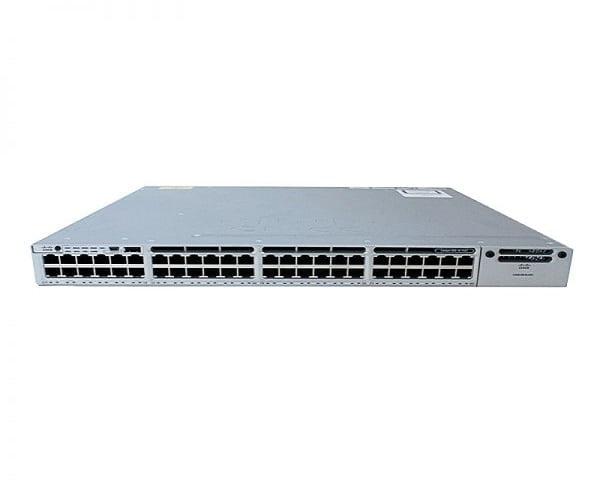

Visão Geral Switch Cisco Catalyst WS-C3850-48P-L
Especificações (WS-C3850-48P-L) Switch Cisco 48 Portas Gigabit Gerenciavel PoE
| Cisco catalyst 3850-48P-L | |||
| Model info | WS-C3850-48P-L | ||
| enclosure type | Rack-mountable – 1U | ||
| Ports | 48 x 10/100/1000 (POE+) | ||
| Network management Interface | * Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling * Management console port: RJ-45-to-DB9 cable for PC connections | ||
| Available PoE Power | 435W | ||
| Switching Capacity | 176Gbps | ||
| Maximum stacking number | 9 | ||
| Stack Bandwidth | 480Gbps | ||
| Forwarding Performance | 130.95Mpps | ||
| FNF entries | disabled (IP base license required) | ||
| Maximum VLANs IDs | 255 | ||
| MAC Address Table Size | 32K | ||
| CPU | Multicore CPU | ||
| RAM | 4 G | ||
| Flash Memory | 2 G | ||
| Wireless | |||
| Number of AP per switch/stack | 50 | ||
| Number of wireless clients per switch/stack | 2000 | ||
| Total number of WLANs per switch | 64 | ||
| Wireless bandwidth per switch | up to 40Gbps | ||
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 | ||
| Expansion / Connectivity | |||
| Console ports | USB (Type-B), Ethernet (RJ-45) | ||
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot | ||
| Network Modules Selection | * C3850-NM-4-1G: 4 x 1G uplinks network module * C3850-NM-4-10G: 4 x 10G uplinks network module * C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module | ||
| Stacking cable | * STACK-T1-50CM StackWise stacking cable with a 0.5 m length * STACK-T1-1M StackWise stacking cable with a 1.0 m length * STACK-T1-3M StackWise stacking cable with a 3.0 m length | ||
| Stack Power Cable (recommended) | * CAB-SPWR-30CM stack power cable with a 30CM length * CAB-SPWR-150CM stack power cable with a 150CM length | ||
| Power supply | PWR-C1-715WAC | ||
| Power Device | Power supply – redundant – plug-in module | ||
| Power Redundancy | optional | ||
| Voltage range (Auto) | 100V-240V | ||
| Power Consumption of standalone(in Watts) | 135.96 (Max) | ||
| Miscellaneous | |||
| Width | 17.5 Inches (44.5 Cm) | ||
| Depth | 17.7 Inches (44.5 Cm) | ||
| Height | 1.75 Inches (4.45 Cm) | ||
| Weight | 17.4 Pounds (7.9Kg) | ||
| Rack Mounting Kit | optional | ||
| MTBF in hours | 241,050 | ||
| Compliant Standards | * IEEE 802.1D Spanning Tree Protoco * IEEE 802.1p CoS Prioritization * IEEE 802.1Q VLAN * IEEE 802.1s * IEEE 802.1w * IEEE 802.1X * IEEE 802.1X-Rev * IEEE 802.11 * IEEE 802.1ab (LLDP) * IEEE 802.3ad * IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports | * IEEE 802.3 10BASE-T * IEEE 802.3u 100BASE-TX * IEEE 802.3ab 1000BASE-T * IEEE 802.3z 1000BASE-X * RMON I and II standards * SNMP v1, v2c, and v3 * IEEE 802.3af and IEEE 802.3at | |
| System software / license | |||
| System software | IOS LAN Base (Upgradable) WS-C3850-48P-L | ||
| EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 | ||
| Software license | * C3850-48-L-S : LAN Base to IP Base RTU paper license * C3850-48-L-E: LAN Base to IP Services RTU paper license * L-C3850-48-L-S: LAN Base to IP Base RTU electronic license * L-C3850-48-L-E: LAN Base to IP Services RTU electronic license | ||
| Access Point Licenses |
| ||
| features | * RPS Support * Jumbo Frames * VLANS * Voice Vlan * VTPv2 * CDPv2 * LLDP * 802.3ad LACP * PVST/PVST+ * 802.1W/802.1S * Port Fast/Uplink Fast * port CoS Trust and Override * Trusted Boundary * ACL Classification * ingress Policing * Auto QoS * 802.1p queues * Scheduling * Priority Queuing * Configure CoS Priority Queues * Configure CoS Priority Queues * Configure Queue Weights * Configure Buffers and Thresholds * Class & Policy Maps * Modify CoS and DSCP Mapping * Weighted Tail Drop * DSCP transparency | ||
| Advanced Network security | * Port security * DHCP snooping * Dynamic ARP inspection (DAI) * IP source guard * The Unicast Reverse Path Forwarding (uRPF) * Bidirectional data support on a SPAN * User authentication * Multidomain authentication * MAC address notification * IGMP filtering * Cisco security VLAN ACL * Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) * Port-based ACLs * TACACS+ and RADIUS authentication * Bridge protocol data unit (BPDU) Guard * Spanning Tree Root Guard (STRG) | ||
| Management | * BRIDGE-MIB * CISCO-AUTH-FRAMEWORK-MIB * CISCO-BRIDGE-EXT-MIB * CISCO-IP-URPF-MIB * CISCO-BULK-FILE-MIB * CISCO-CABLE-DIAG-MIB * CISCO-CALLHOME-MIB * CISCO-CIRCUIT-INTERFACE-MIB * CISCO-ENTITY-VENDORTYPE-OID-MIB * CISCO-CONTEXT-MAPPING-MIB * CISCO-DEVICE-LOCATION-MIB * CISCO-DHCP-SNOOPING-MIB * CISCO-EMBEDDED-EVENT-MGR-MIB * CISCO-ENTITY-FRU-CONTROL-MIB * CISCO-ENTITY-SENSOR-MIB * ENTITY-MIB * CISCO-ERR-DISABLE-MIB * CISCO-CONFIG-COPY-MIB * CISCO-FTP-CLIENT-MIB * CISCO-IF-EXTENSION-MIB * CISCO-CONFIG-MAN-MIB * CISCO-LAG-MIB * CISCO-LICENSE-MGMT-MIB * CISCO-MAC-AUTH-BYPASS-MIB * CISCO-MAC-NOTIFICATION-MIB * CISCO-MDI-METRICS-MIB * CISCO-FLASH-MIB * CISCO-PAE-MIB * CISCO-PAGP-MIB * CISCO-PING-MIB * CISCO-PORT-SECURITY-MIB | * CISCO-POWER-ETHERNET-EXT-MIB * CISCO-PRODUCTS-MIB* CISCO-RTP-METRICS-MIB * CISCO-RTTMON-MIB * CISCO-SNMP-TARGET-EXT-MIB * CISCO-STACKMAKER-MIB* CISCO-MEMORY-POOL-MIB * CISCO-STP-EXTENSIONS-MIB* CISCO-SYSLOG-MIB * CISCO-TCP-MIB * CISCO-UDLDP-MIB * CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB * CISCO-VLAN-MEMBERSHIP-MIB * CISCO-VTP-MIB * EtherLike-MIB * HC-RMON-MIB * IEEE8021-PAE-MIB * IEEE8023-LAG-MIB * IF-MIB * LLDP-EXT-MED-MIB * LLDP-MIB * NOTIFICATION-LOG-MIB * OLD-CISCO-MEMORY-MIB * CISCO-CDP-MIB * POWER-ETHERNET-MIB * RMON2-MIB * RMON-MIB * SNMP-COMMUNITY-MIB * SNMP-FRAMEWORK-MIB * SNMP-MPD-MIB * SNMP-NOTIFICATION-MIB * SNMP-PROXY-MIB * SNMP-TARGET-MIB * SNMP-USM-MIB * SNMPv2-MIB * SNMP-VIEW-BASED-ACM-MIB * TCP-MIB * UDP-MIB * CISCO-IMAGE-MIB * CISCO-STACKWISE-MIB | |
| Technical Support and Services | * Cisco SMARTnet Service * Cisco Smart Foundation Service * Cisco SP Base Service * Cisco Focused Technical Support Services |
| Product Code | WS-C3850-48P-L |
| Enclosure Type | 1 RU |
| Feature Set | LAN Base |
| Available PoE Power | 435W |
| Network SFP uplink module selection | C3850-NM-4-1G C3850-NM-2-10G C3850-NM-4-10G |
| Ports | 48 x 10/100/1000 (POE+) |
| Maximum stacking number | 9 |
| Stack bandwidth | 480 Gbps |
| Forwarding Performance | 130.95 Mpps |
| Switching Capacity | 176 Gbps |
| RAM | 4 G |
| Flash Memory | 2 G |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Dimensions | 44.5 cm x 44.5 cm x 4.45 cm |
| Package Weight | 17.49 Kg |
Para mais informaçõess consulte aqui o datasheet Cisco Catalyst 3850 Series Switches
